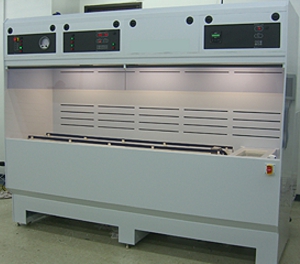

Horizontal Quartz Tube Cleaning Station
Modutek’s Horizontal Quartz Tube Cleaning Stations are designed and built around your quartz tube configuration. All quartz tube cleaners incorporate an acid spray cycle, rinse cycle and an option dry cycle. Once the application is defined we add appropriate options like holding tanks, programmable rinse cycles, bottle washer and T/C sheath cleaner to complete your design. All tube cleaners include all required safety features with sign off drawings. Our expertise in developing quartz tube cleaning stations and outstanding customer support gives you the satisfaction you deserve. All process, etching or cleaning components are built and designed in-house giving you complete turnkey support.
Quartz Tube Cleaning Station Benefits Include:
Custom designed around your tube requirement
Automation option with program recipes
Multifunctional design
Rugged and reliable tube roller design
One piece construction up to 10’ in length
Quartz Tube Cleaning Station Standard Features:
White polypropylene construction
Manual tube roller system
Back draft exhaust
Available in any size and length to meet you requirement
All stations wired per NFPA 70 & 79
Emergency Power Off (EPO) with mushroom button and all safety interlocks
All process tanks with 1” lip exhaust
N2 head case purge
Photohelic with interlock to EPO
PVC safety shields
Teflon N2 gun and DI water hand spray
Continuous flow DI water manifold
Casters and leg levelers
One year warranty on all parts
2 copies paper manual and one complete set of paperless
Options:
FM4910 (PVC-C) material of construction
Automated tube roller system
Hot N2 tube drying system
On board bottle washer available
One board T/C sheath cleaner available
Acid holding tank
Acid filtration system
Acid mixing
Rear access design
Third party certification for NFPA 70 & 70
Semi standard, CE mark and NEC certification available
Seismic zone 4 structural certification
Lift station designed into bench
Overhead deck lighting
Light tower (3-color)
Counter balance safety shields
Extended warranty available
Applications:
Quartz tube cleaner
Epi tube cleaner
Poly Silicon tube cleaner
Bottle washer
If you need more information or a quote for a Quartz Tube Cleaning Station call Modutek at +086 513 87733829.
